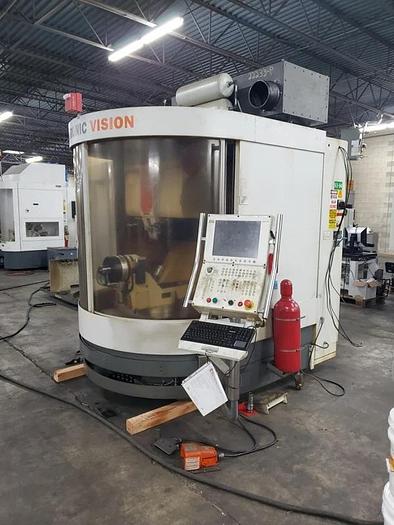

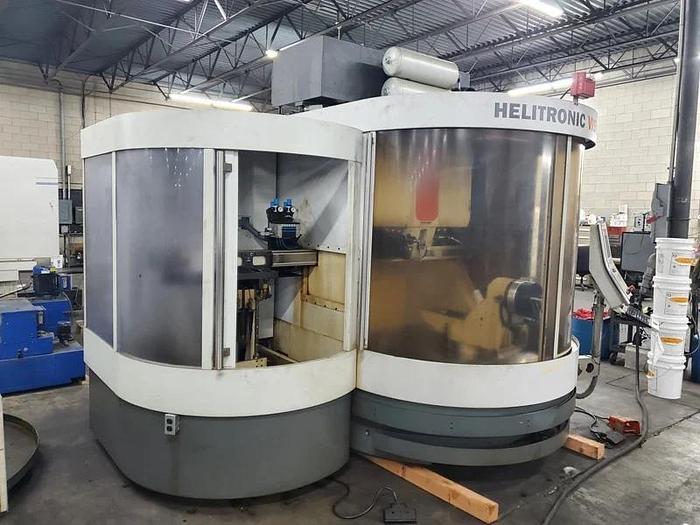

2005 WALTER HELITRONIC VISION

Machine Serial No.: 693024

Machine Model No.: Vision

New Date: 2005

This is a Universal Tool & Cutter Grinder with 5 CNC Axes to Manufacture Endmills, Drills, Step Drills, Step Tools, Woodworking Tools, Profile Insert Cutters and Others.

SPECIFICATIONS:

Maximum Diameter for Complete Grinding: 12.6"

Maximum Tool Length for Peripheral Grinding: 14.6"

Maximum Tool Length for End Teeth Grinding: 11.8"

Maximum Tool Length for Complete Grinding: 11.8"

(Lengths Measured from the ISO 50 Work Head Taper Gage Point)

Linear Axes Rapid Traverse Rate: Up to 2,000 IPM

Rotary C-Axis: 120 IPM

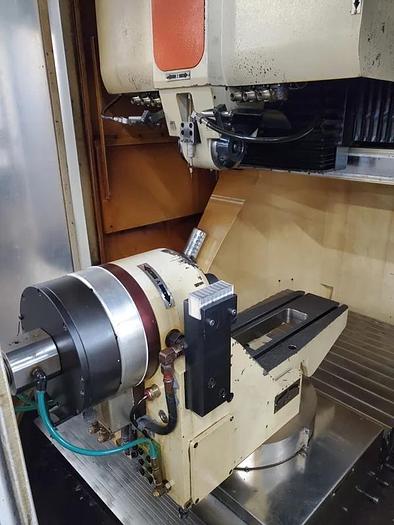

Work Head A-Axis: 750 RPM

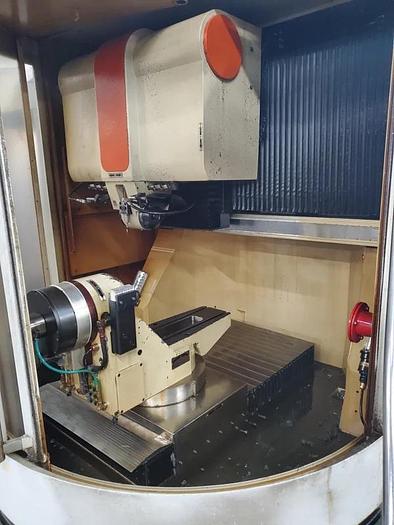

Double Ended Grinding Spindle

Peak Output: 40 HP

Spindle Speeds, Variable: 0 to 12,000 RPM

Diameter of Motor Spindle: 3.9"

Maximum Grinding Wheel Diameter: 8"

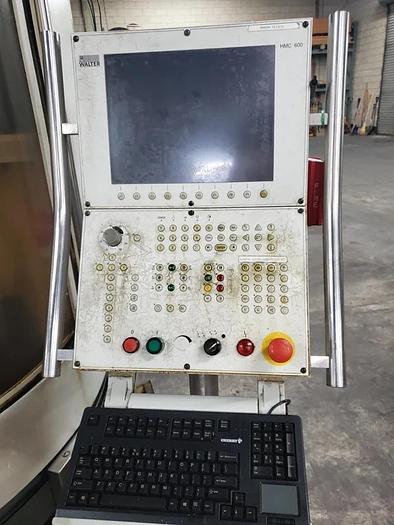

CONTROL:

Helitronic 600 (Windows Based)

Upgraded Tool Studio Software

15" TFT Touch Screen

EQUIPPED WITH:

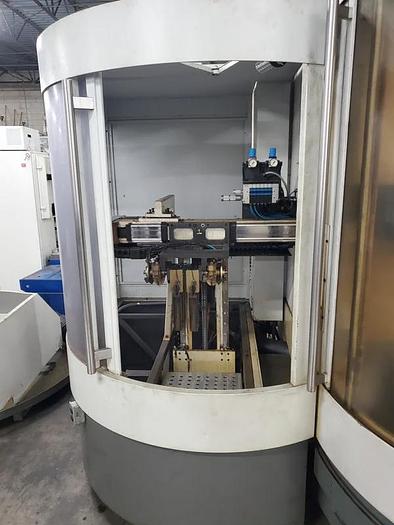

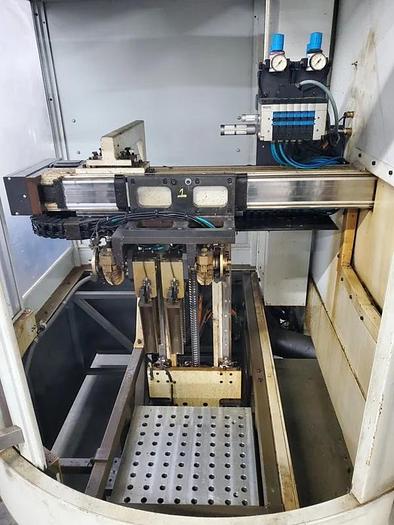

Pallet Loader

Fire Suppression System

Mist Collector

Note: NO Coolant System Included. Machine was Originally Connected to Central System.
