2005 Walter Helitronic VISION

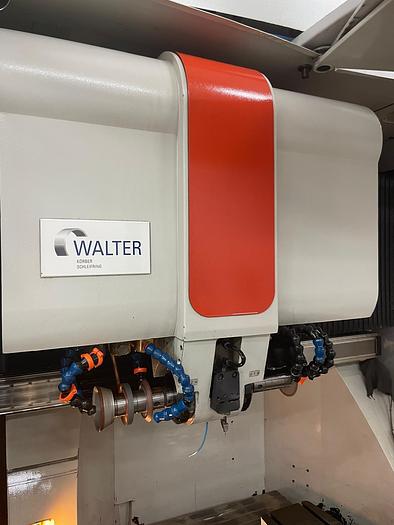

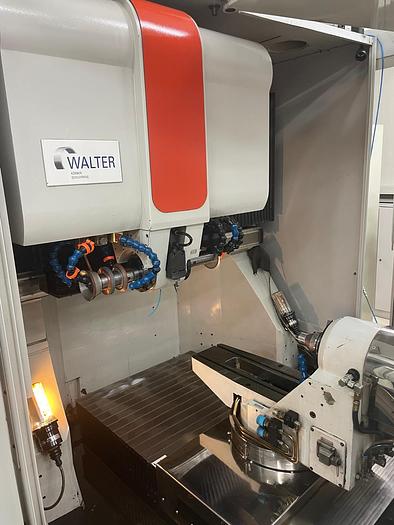

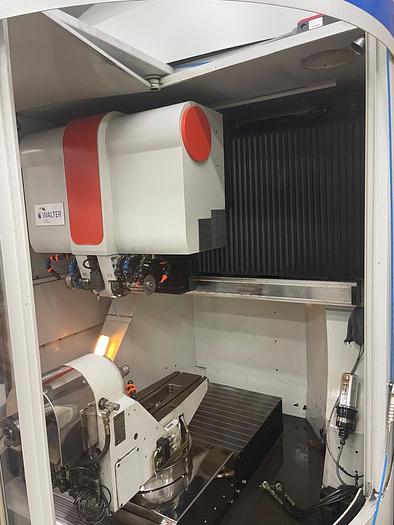

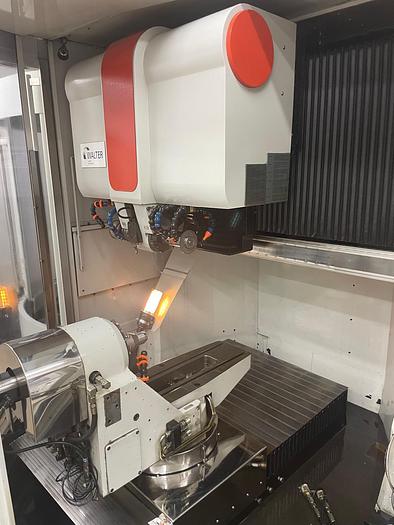

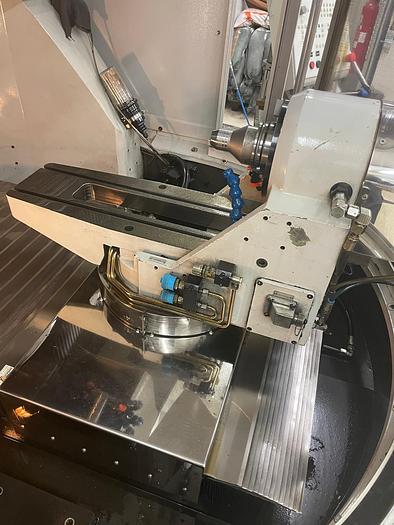

The Walter Vision, Serial Number: 690021, has a more rigid mineral cast machine bed with very good vibration dampening ensures that the highly dynamic drive acts optimally on the grinding wheel and its extremely low temperature sensitivity makes the grinding process particularly stable. The high precision CNC tool grinding machine can grind lengths of up to 14.6” on the perimeter and provides optimum conditions for grinding rotationally symmetrical tools in production and/or resharpening facilities. The scope includes the efficient production of milling cutters, drills, levels tools, wood working tools, profile blades or profile tools from any commercially available materials such as HM, HSS, ceramic, Cermet and CBN. The machine for the processing of long drills and tight between top tools, such as large hobbing cutter is ideal. All five CNC axes are equipped with linear drives and are controlled by the integrated high resolution measurement systems. They create exact movements while at the same time creating high dynamics. This Walter grinder tool grinding machine has a rotary axis C with a torque drive for the highest accuracy and durability. And a rotary axis A as a torque motor with a maximum of 750 min-1. For extended functionality, such as precise profile grinding or background lines. The powerful, directly powered motor spindle with a spindle end and 35 KW spindle power is directly attached to the C-axis.

The machine is equipped with:

Electrostatic coolant mist and vapour separator.

Cover for electrostatic mist and vapour separator.

Fire extinguisher Craft&Bauer CO2

Complete Hydraulic packeage

Hydraulically activated tailstock

Hydraulically activated lunette

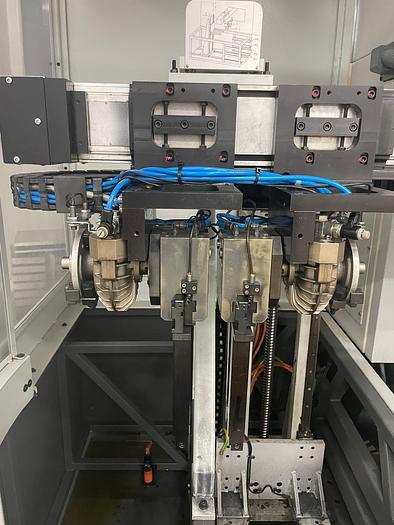

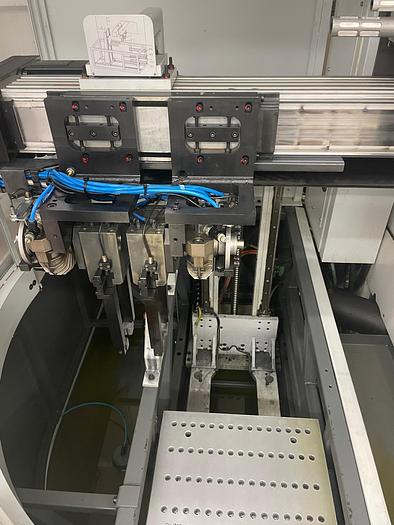

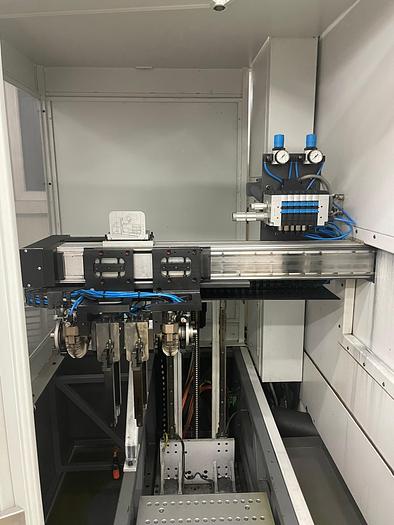

Lift loader

1 gripper set for loader

Gripper jaws 3-10

Gripper jaws 10-20

Lift loader tool pallet for tool diameter: 3, 4, 5, 6 (2X),8, 10, 12, 14, 16, 18, 20 mm (with troley)

Grinding wheel adaptor 2x

Refrigerating unit for machine cooling

Torque wrench for changing the grinding wheel adopters

Also documentation in printed version German and English is included.

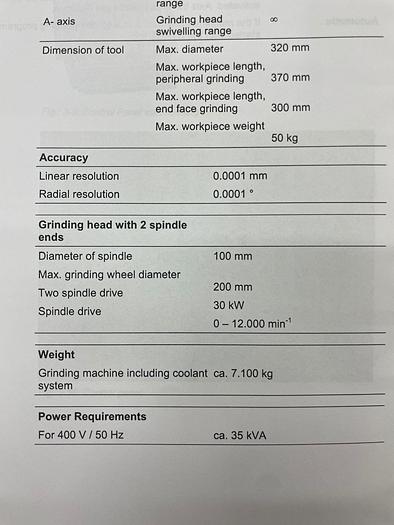

Specifications:

Max Grind Length14.6"

Max Grind Diameter12.6"

X-Axis Travel 18.9"

Y-Axis Travel 12.6"

Z-Axis Travel 27.56"

C-Axis + 200 deg

Workhead 600 ipm

Total Power 40 HP

Grinding wheel diameter 8"

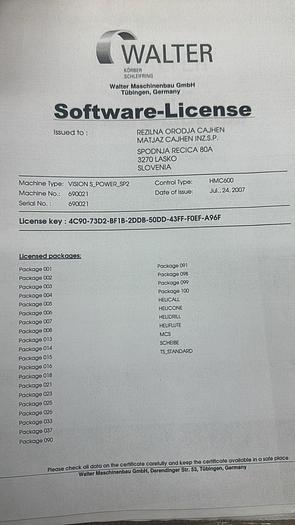

SOFTWARE WINDOWS MODE LICENSE: 4C90-73D2-BF1B-2DDB-50DD-43FF-FOEF-A96F

Package 001

Package 002

Package 003

Package 004

Package 005

Package 006

Package 007

Package 008

Package 013

Package 014

Package 015

Package 016

Package 018

Package 021

Package 023

Package 025

Package 026

Package 033

Package 037

Package 090

Package 091

Package 098

Package 099

Package 100

HELICAL

HELICONE

HELIDRILL

HELIFLUTE

MCS

SCHEIBE

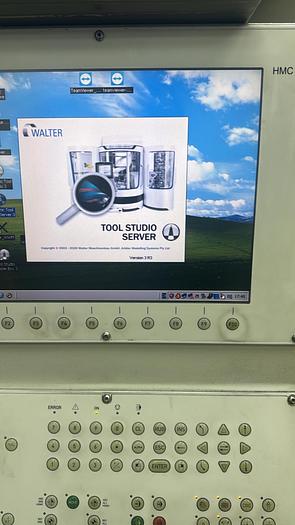

Helitronic Tool Studio 3.1 Standard License
