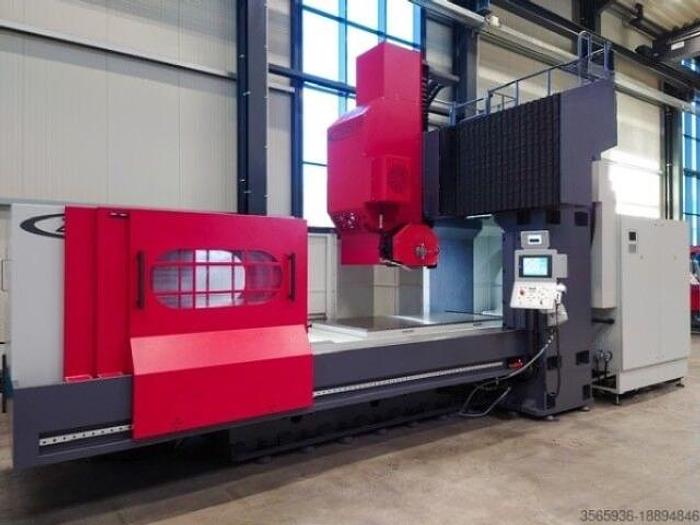

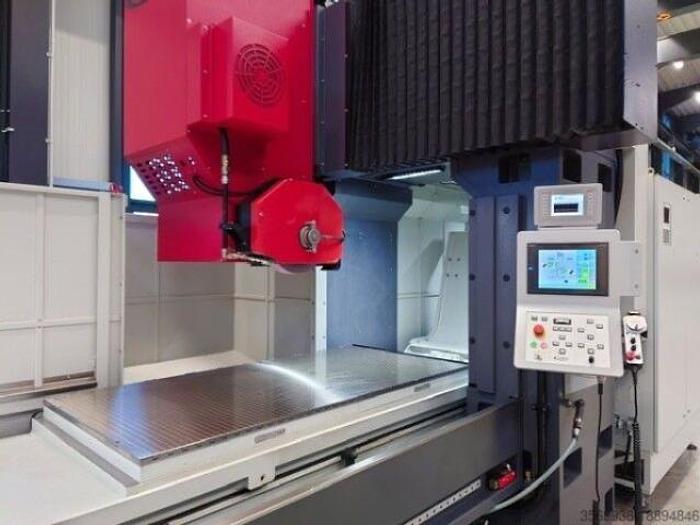

2023 Ziersch Z 1020 with Z-Contro Ano 2023 mas nunca usada.

TECHNICAL DETAILS

Grinding length: 2,000 mm

Grinding width: 1,200 mm

Total height: 720 mm

Feed length X-axis: 2,500 mm

Feed length Y-axis: 1,050 mm

Feed length Z-axis: 1,100 mm

Workpiece weight (max.): 3,500 kg

Grinding height: 720 mm

Feed rate X-axis: 30 m/min

Feed rate Y-axis: 3 m/min

Feed rate Z-axis: 5 m/min

Grinding wheel diameter: 600 mm

Distance table to spindle center: 1,050 mm

Table length: 2,000 mm

Table load: 4,000 kg

Type of input current: three-phase

Table width: 1,000 mm

Grinding wheel width: 150 mm

Spindle speed (max.): 3,000 rpm

Spindle speed (min.): 5 rpm

Overall weight: 36,000 kg

Grinding spindle motor power: 22 W

Travel distance X-axis: 2,500 mm

Travel distance Y-axis: 1,050 mm

Travel distance Z-axis: 1,100 mm

Warranty duration: 12 months

Space requirement height: 4,550 mm

Space requirement length: 7,850 mm

Space requirement width: 4,840 mm

Equipment:documentation/manual, rotational speed infinitely variable
